Background Subtraction

Quadrant Folding estimates and removes diffuse background scattering from the quadrant-folded image. Several algorithms from the CCP13 FibreFix suite are available, along with 2D convex hull and white top-hat methods. Methods can be used alone, combined across radius (inner/outer merge), or chosen automatically using a quantitative loss score.

For the algorithmic details of each method, see How it works — Apply Background Subtraction. This page documents the current GUI workflow (Results tab and Background Subtraction Settings dialog).

Introduction

Muscle diffraction patterns carry a diffuse background whose structure varies with radius and angle. The choice of subtraction method therefore depends on what you need from the analysis—display, peak fitting, or downstream normalization—and on which part of the pattern matters most.

In principle, background should be removed consistently across the entire folded image. In practice, no single algorithm performs equally well at all radii: some methods preserve low-angle equatorial features while others handle the high-angle region more reliably. 2D Convexhull is currently the strongest option for revealing equatorial structure near the beam. At larger radii, where meridional layer lines dominate, White-top-hats and Smoothed-Gaussian typically give cleaner results; Automated Processing can search among these methods and select parameters using the compound loss metric.

To obtain plausible background removal over the full pattern today, use Manual Setting | Transition, which fits an inner method at small radii and an outer method at large radii, then merges the two estimates at a Transition Radius. A future release will add dedicated equator-streak fitting followed by general background removal on top of that estimate.

For time-resolved (TDI) normalization, you may instead fix one method and parameter set and apply it uniformly to every frame in a sequence. The summary csv file will contain the integrated background sum between rmin and rmax for each frame.

See Examples for more details.

Where to find the controls

Background subtraction is configured from two places in the Results tab:

1. Background Subtraction panel (collapsible section on the right) — quick access to mode, method parameters, apply buttons, and current configuration summary.

2. Advanced Configuration — opens the Background Subtraction Settings dialog for R-min/R-max, image processing, automated optimization, evaluation metrics, saved configurations, and batch processing.

A link at the top of the dialog points back to this documentation.

Processing options

Use the Options dropdown in the Results tab to choose how background is applied:

Option	Description
Manual Setting | One Method	A single subtraction method on the full pattern (inner region). Method and parameters are set in the panel; click Apply Selected Subtraction Settings to reprocess.
Manual Setting | Transition	One method for radii below the transition radius (inner) and another for radii above (outer). Results are merged using Transition Radius and Transition Delta. 2D Convexhull is not available for the outer method.
Automated Processing	Parameter search and/or selection from saved configurations using the compound loss metric. Use Apply Default Optimization on the current image, then tune settings in Advanced Configuration.

Manual controls are shown in the Results panel. Apply Default Optimization and Advanced Configuration are shown only when Automated Processing is selected.

Manual Setting | One Method

1. Subtraction Method — Select the background subtraction method to use.

2. Method-specific parameters — Set the method-specific parameters.

3. Apply Selected Subtraction Settings — Click to apply the selected subtraction settings.

Set the method and parameters to use for the background subtraction.

Manual Setting | Transition

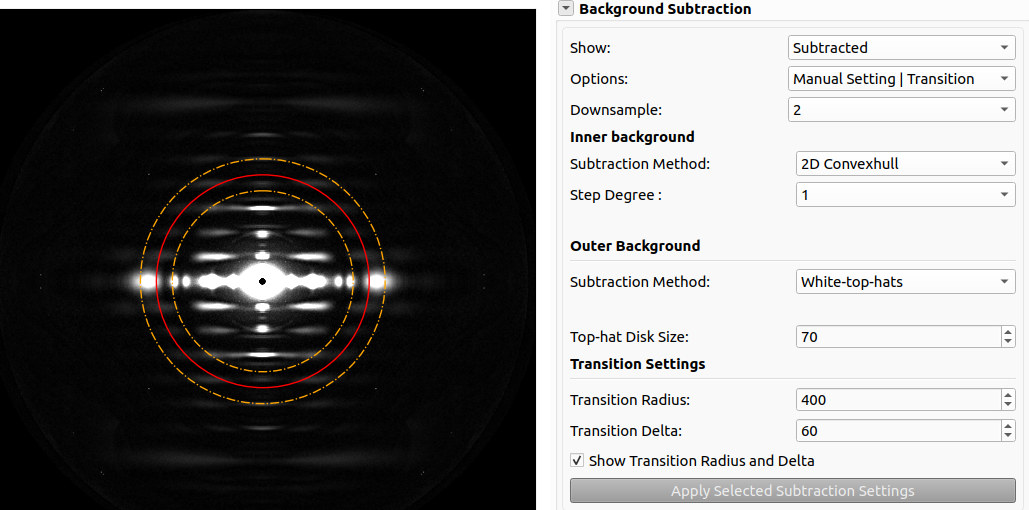

1. Inner background — Method and parameters for radii inside the transition region (e.g. 2D Convexhull).

2. Outer background — Separate method and parameters for larger radii (e.g. Smoothed-Gaussian).

3. Transition Radius — Radius where inner and outer estimates are blended.

4. Transition Delta — Width of the linear blend zone.

5. Show Transition Radius and Delta — Overlay transition circles on the folded image.

Set the transition radius just outside the M3 meridional peak when possible.

Automated Processing

Apply Default Optimization runs this search with default methods on the current image and can add a Default Optimization entry to the configuration table to be applied to subsequent images. Advanced Configuration allows to adjust the settings for the optimization and add additional configurations to the configuration table.

Recommended workflow using Automated Processing

Step 0: Apply Default Optimization

Click Apply Default Optimization to run the optimization with the default settings. This will run the optimization with the default settings (White-top-hats and Smoothed-Gaussian) and pick the best performing method and parameters based on the default loss weights, and add a Default Optimization entry to the configuration table. This is a good starting point for most datasets. If the results are satisfactory, you may review the next image which will be applied the same settings and run Process Folder to process the entire folder. If the results are not satisfactory, you can always tune the settings in the Advanced Configuration dialog.

The Background Subtraction Settings dialog is organized in three steps:

Step 1: Adjust image settings and process

• R-min/R-max — Define the radial range used for masking and fitting. R-min excludes the backstop; R-max limits the outer edge of the pattern. Use Manual R-min/max to set values on the image, Show R-min/max to overlay circles, and Persist R-min/max to reuse values when switching images.

• Image Processing — Downsample (1, 2, or 4) speeds optimization and smooths the background; Smooth Image optionally smooths the folded image before subtraction using an edge-preserving smoothing algorithm (OpenCV’s guided filter). By default, the image is downsampled by 2 and the background is smoothed.

• Subtraction — In the dialog, choose Manual or Automated processing mode:

  • Manual: Select Subtraction Method and method-specific parameters (same methods as in the Results panel).

  • Automated: Multi-select BG Subtraction Methods, set Step Sizes (comma-separated schedule, e.g. 100, 50, 25, 10, 5, 3, 1), Max Iterations per parameter, and Early Stop Loss Threshold.

• Evaluation Masks - Adjust the evaluation masks to restrict scoring to physically meaningful regions:

  • Equator Height and Equator Center Radius — mask the equator and central beam.

  • Layer line spacing and Layer line width — mask Bragg layer lines so they do not dominate the loss.

.. warning:: Automatic detection of Equator Height, Equator Center Radius, Layer line spacing, and Layer line width is not implemented yet. Set these values manually in Evaluation Masks for each dataset.

To view the evaluation masks, click Show in the Results tab to inspect Subtracted, Background, Folded, Evaluation Mask, Synthetic Signal, or Synthetic Mask.

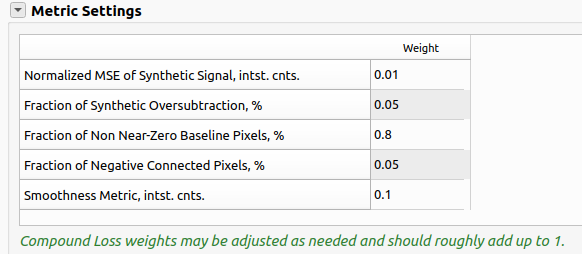

• Metric Settings - Adjust the relative importance of each metric and the normalization means. The weights should roughly add up to 1. The weights may depend on the dataset and are the most important settings to adjust to get the best results. Leave the default values for the first run and adjust after reviewing the results. The normalization means are hidden by default; double-click the metric table header to show/hide means. Usually, they don’t need to be adjusted.

• Additional Settings -

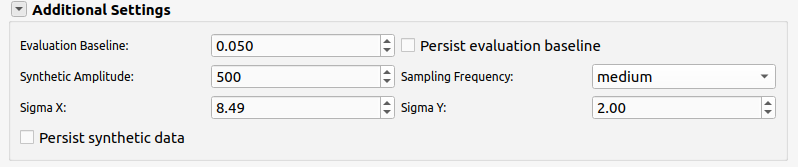

  • Evaluation Baseline sets the near-zero threshold; Persist evaluation baseline keeps it when changing images. Evaluation Baseline allows to adjust the near-zero threshold for the calculation of Fraction of Non Near-Zero Baseline Pixels. This is the threshold below which pixels are considered to be part of the background. Change this value if the noise level doesn’t match the calculated value.

  • Synthetic amplitude and sigmas (and Sampling Frequency) define the reference pattern used in MSE and oversubtraction metrics.

• Click Apply Selected Subtraction Settings (dialog or Results panel) to run on the current image. During automated optimization the button becomes Stop Optimization which will stop the optimization and return the previous best performing method and parameters. This is useful when you want to tune the settings and rerun the optimization.

Step 2: Review results

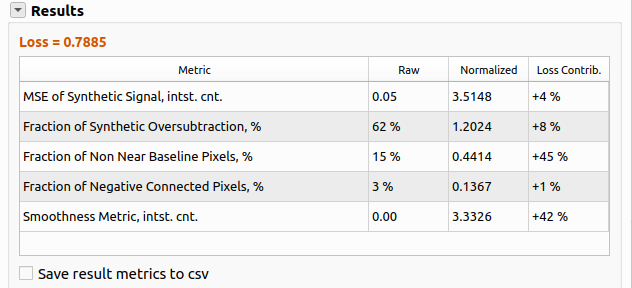

After processing, the Results section shows Loss and a table of metrics:

Metric	Meaning	Purpose
Positive NMSE of Synthetic Signal	Linearly scaled normalized mean squared error between the subtracted image and a synthetic meridional reference, inside the evaluation mask.	Measure the preservation of the synthetic signal. Lower is better. High when the synthetic signal is changed significantly.
Fraction of Synthetic Oversubtraction	Share of masked pixels where subtraction went below the synthetic reference.	Measure the amount of synthetic signal that is removed. Lower is better. High when the synthetic signal is removed significantly.
Fraction of Non Near-Zero Baseline Pixels	Share of masked pixels still above the evaluation baseline after subtraction.	Measure the amount of background that is not removed. Lower is better. High when the background is not removed significantly.
Fraction of Negative Connected Pixels	Share of connected negative regions (oversubtraction artifacts).	Measure the amount of oversubtraction artifacts. Lower is better. High when the oversubtraction artifacts are significant.
Smoothness Metric	Penalty for roughness in the estimated background.	Measure the smoothness of the estimated background. High when the background is rough.

Compound loss is a weighted sum of normalized metrics. Adjust Metric Settings (weights and normalization means; double-click the metric table header to show/hide means).

• Save result metrics to csv - Save the result metrics to a csv file. This is useful for further analysis. This will save the result metrics to a csv file in the qf_results/bg folder with name background_metrics.csv.

Step 3: Batch processing

1. When satisfied with settings on a representative image, click Add Background Configuration to save the selected method and parameters under a configuration name. Loss is also added for information. Configurations are stored in qf_cache/background_cache.json for the folder.

2. Repeat for other parameter sets if needed (e.g. different muscle types).

3. Under Folder Processing:

   • Choose best configuration for images automatically — For each image in the folder, evaluate all saved configurations and apply the one with lowest loss (typical for heterogeneous datasets). This is the recommended option for most datasets.

   • Manually assign configurations to images — Open the assignment dialog to map specific configuration names to filenames (disabled while auto-select is on). This is useful for datasets with a clear separation between different types of images.

4. Click Process Current Folder (dialog or navigator) to batch-process with the chosen configuration logic.

The Current Configuration summary in both the dialog and Results panel shows the active method, parameters, and loss after each run.

Subtraction methods and parameters

Six methods are available (plus None). Visible parameters depend on the selected method.

Circularly-symmetric

• Pixel Range (min–max %): lowest-intensity pixels averaged per radial bin (e.g. 0–25% = lowest quarter).

• Radial Bin (pixels)

• Smoothing factor (spline smoothing)

2D Convexhull

• Step Degree (angular bin size for radial histograms)

• R-min (and R-max when set)

Roving Window

• Window Size (X, Y) and Window Separation (X, Y)

• Pixel Range (%)

• Smoothing factor and Tension factor

White-top-hats

• Top-hat Disk Size

Smoothed-Gaussian

• Gaussian FWHM

• Number of Cycles

Smoothed-BoxCar

• Box Car Size (X, Y)

• Number of Cycles

Default optimization searches White-top-hats and Smoothed-Gaussian unless you change the method list.

Automated processing details

When Automated Processing is active and optimization runs:

1. For each selected method, the program searches parameter space using the configured step schedule and iteration limit.

2. The optimization processes tunes each parameter in the selected method one at a time in the order of their importance.

3. Candidates are scored with the compound loss; search can stop early when loss drops below Early Stop Loss Threshold.

4. The best method/parameter set is written to Current Configuration and used for the result image.

Apply Default Optimization runs this search with default methods on the current image and can add a Default Optimization entry to the configuration table.

For batch runs with Choose best configuration for images automatically, optimization is not repeated per image; each saved configuration is evaluated once and the lowest-loss configuration is applied.

Examples

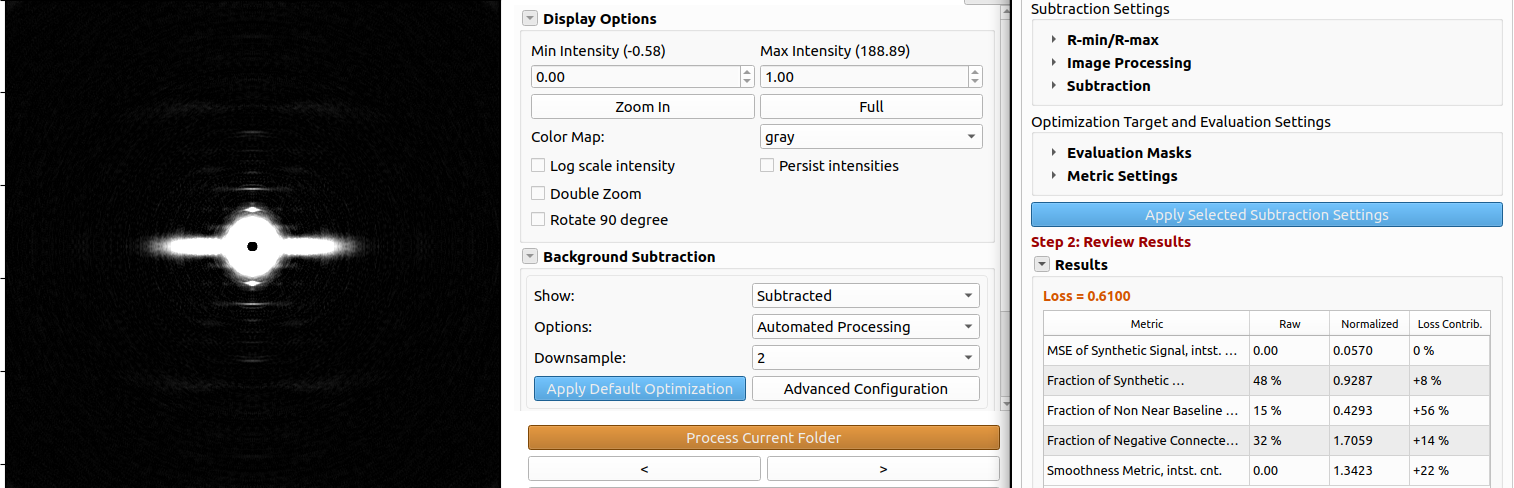

Example 1: High Angle Features with Automated Processing - Intact Mouse Skeletal Muscle - Faint pattern & faint background

The default weights are used for the optimization.

Example 2: Whole Pattern Background Subtraction with Transition - 2D Convexhull for Inner and Smoothed Gaussian for Outer - Skinned Pig Cardiac Muscle - High intensity background

This example shows the use of transition mode to remove background on the whole pattern. This is preferable for visualization of patterns where the equatorial features are important. The transition radius and delta are shown in yellow and red.

Headless mode

Background subtraction parameters can be set in qfsettings.json. Important keys include bgsub, bgsub_out, transition_radius, transition_delta, fixed_rmin, fixed_rmax, method-specific fields (fwhm, cycles, win_size_x, win_sep_x, etc.), and bg_options (0 = one method, 1 = transition, 2 = automated). For automated batch behavior, also pass saved configurations and flags such as choose_configurations_auto as produced by saving settings from the GUI (File → Save current settings).

See How to use — Headless Mode for the general headless workflow.
