Total Diffracted Intensity

Introduction

The Total Diffracted Intensity (TDI) tool is part of the MuscleX suite developed for analyzing X-ray diffraction images of biological samples, such as muscle fibers. In diffraction experiments, total diffraction intensity is a key quantitative measure - it reflects the overall scattering power of the sample, which is proportional to properties like sample mass, density, or structural order.

This tool allows users to:

Define and apply custom masks to isolate regions of interest (e.g., remove background, beamstop artifacts).
Compute and export total and average intensity values from each image in a folder for downstream analysis.

These metrics are valuable for comparing conditions (e.g., relaxed vs. contracted muscle), normalizing datasets, or identifying outliers during high-throughput imaging workflows.

How to Use

Launching the Program

If MuscleX is installed:
```
musclex tdi
```

From source (developer mode):

python3 -m musclex.ui.TotalDisplayIntensity

Required Python packages: PyQt5, matplotlib, fabio, numpy, pandas.

Note that the class TotalDisplayIntensity will be renamed in a future release to TotalDiffractedIntensity.

User Interface Overview

Select an Image
- Click “Select an Image…” to open a diffraction image (TIFF or HDF5).
- The image will appear in grayscale using the default intensity range.
Set Intensity Display Range
- Adjust Min intensity and Max intensity values to control the display range.
- This helps highlight weaker features or saturate bright spots for better contrast.
Mask the Image
- Click “Mask The Image” to launch an interactive masking tool.
- You can define regions to exclude from analysis (e.g., noisy borders).
- The mask is saved as tdi_mask.tif and will be applied to all images.
Navigate Images
- Use the <<< and >>> buttons to browse through the images in the same folder.
Process Folder
- Click “Process Folder” to compute and export results for all images:
  - A CSV file is generated containing total and average intensity values.
  - Results are saved in the tdi_results/ subfolder.

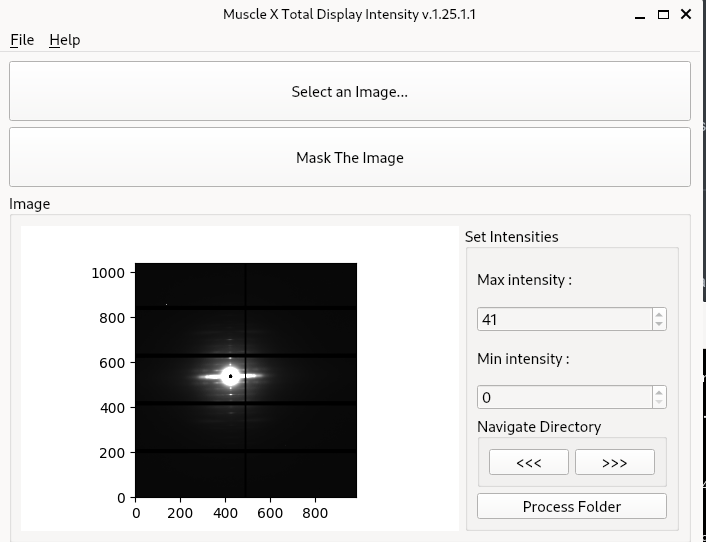

Figure 1. TDI GUI Figure 5: Launch Mask Tool from TDI

How It Works

Image and Mask Loading
- The program reads the image data using the fabio library.
- If a mask is defined, it is applied as a binary filter (1 = valid, 0 = excluded).
Total Intensity Calculation
```
total_intensity = np.sum(masked_image)
```
- The image is multiplied by the mask to zero out unwanted pixels.
- The pixel values in the valid region are summed to compute Total Intensity.
Average Intensity Calculation
```
unmasked_pixels = masked_image.size - np.sum(1 - mask)
avg_intensity = total_intensity / unmasked_pixels
```
- The number of valid pixels is determined by subtracting the count of masked pixels.
- Average Intensity is then the total intensity divided by the number of unmasked pixels.
Export
- Results are saved to tdi_results/summary.csv with the following columns:
  - ImageName: image filename
  - MaskFileName: typically tdi_mask.tif
  - TotalIntensity: sum of all unmasked pixel values
  - AvgIntensity: average value over unmasked pixels

Mask Definition and Usage

Overview

The Mask and Empty Cell Specification window in MuscleX provides a unified interface for defining masks that exclude undesired regions from X-ray diffraction images. It allows manual drawing, intensity-based masking, radial cropping, and subtraction of empty cell (blank) images. These masks ensure cleaner data and more reliable intensity quantification.

Masking Window Features

Feature	Description
Select Empty Cell Image(s)	Load one or more background/blank images to subtract static artifacts like beamstops
Draw Mask	Open a drawing interface to manually exclude regions using polygon, rectangle, or brush
Low Mask Threshold	Excludes pixels below this intensity (e.g. detector gaps, shadowed areas)
High Mask Threshold	Excludes pixels above this intensity (e.g. beam center, saturation artifacts)
Enable Mask Dilation	Optional. Expands the mask area around low/high threshold regions using morphological dilation
Rmin / Rmax	Masks all pixels outside the selected radial range from the image center
Subtract Empty Cell Image	Applies scaled subtraction of selected empty cell image(s) before applying thresholds
Clamp Negative Values to 0	Replaces negative values after subtraction with 0
Show Image With Mask	Dropdown view to preview the mask overlay with current settings applied

Example Workflow

Start in TDI or other MuscleX tool and click “Mask The Image”.
In the mask window:
- Optionally select a blank image for subtraction.
- Enable Low and/or High Mask Threshold and set values.
- (Optional) Check Enable Mask Dilation for either threshold.
- (Optional) Enable Rmin/Rmax and specify radial bounds.
- (Optional) Click Draw Mask to manually mask areas.
Use “Show Image With Mask” dropdown to inspect the result.
Click Save to generate and store the combined mask.

Mask Visualizations

Green = Low threshold mask
Blue = High threshold mask
Red = Manually drawn mask
Purple = Rmin/Rmax radial mask

These masks are visually overlaid in the preview window:

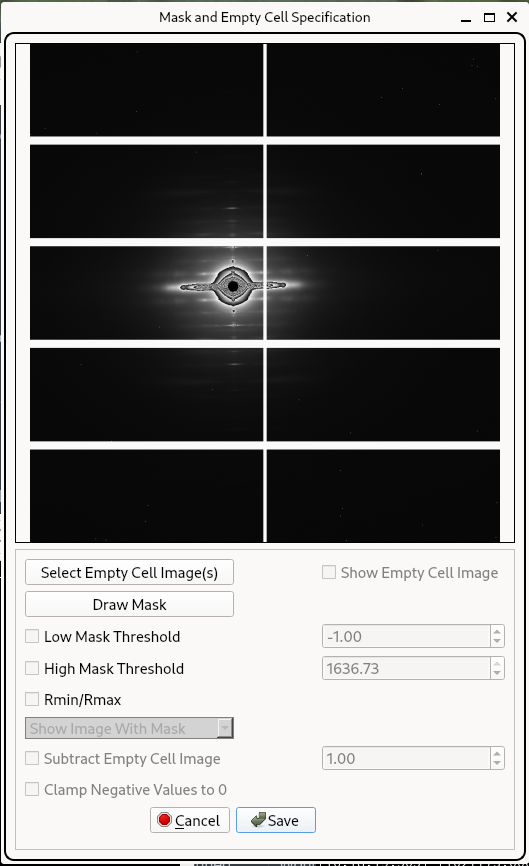

Figure 2. Default Mask Window Figure 1: Default Mask Window

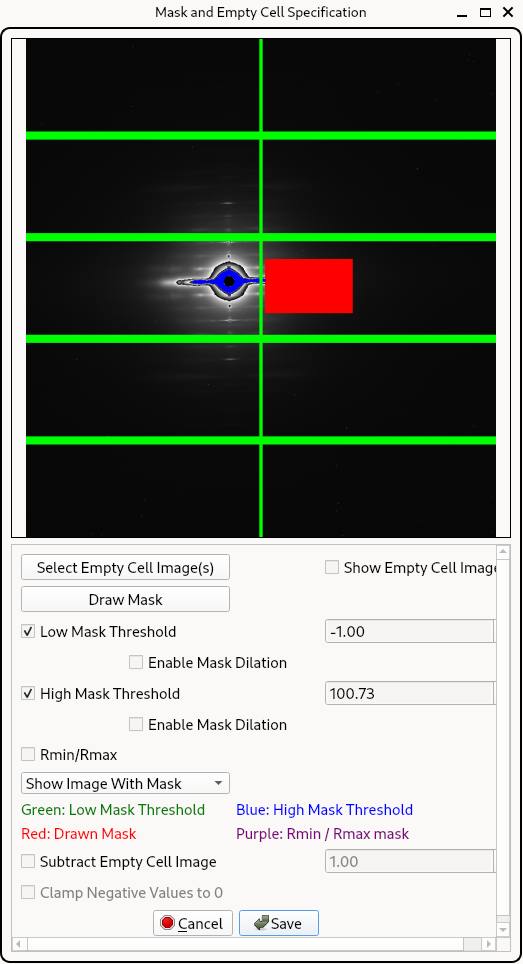

Figure 3. Low and High Threshold Mask with Drawn Region Figure 2: Low and High Threshold Mask with Drawn Region

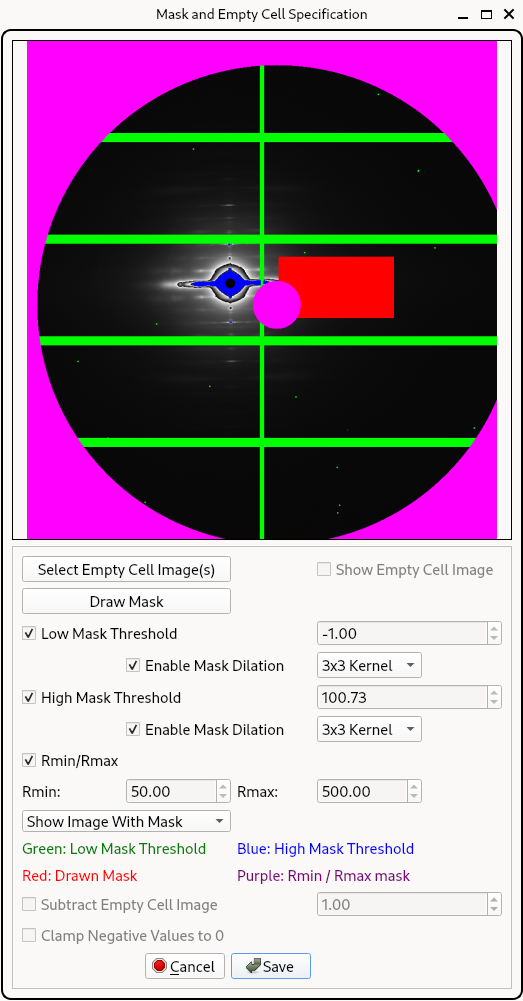

Figure 4. Full Mask: Thresholds, Dilation, Radial Mask Figure 3: Full Mask: Thresholds, Dilation, Radial Mask

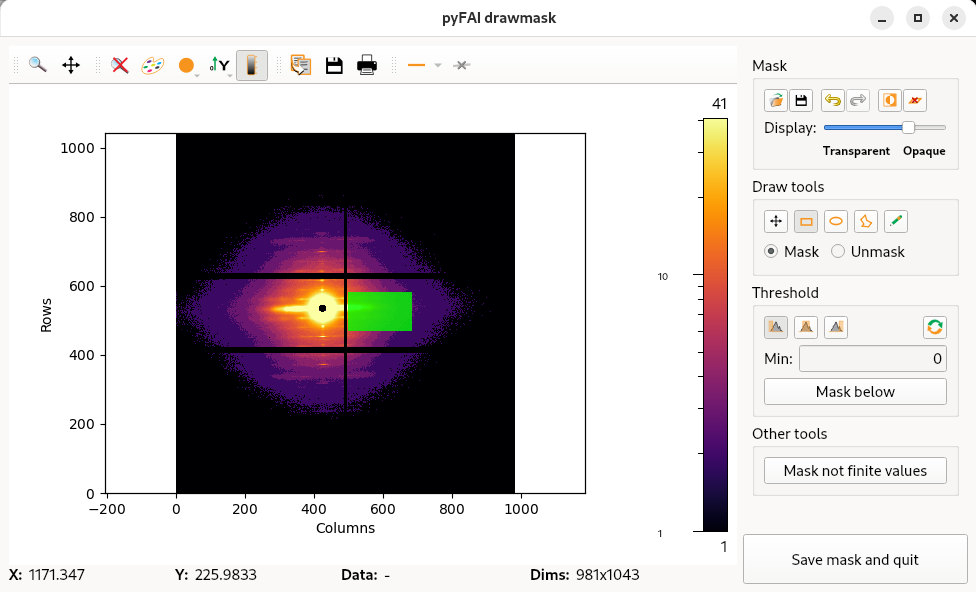

Figure 5. Manual Mask Drawing Interface (pyFAI tool) Figure 4: Manual Mask Drawing (pyFAI)

How Masks Are Combined

After configuration, the following masks are combined via binary AND:

final_mask =
  manual_mask *
  low_threshold_mask *
  high_threshold_mask *
  low_dilation_mask *
  high_dilation_mask *
  radial_mask *
  blank_subtraction_mask

This mask is then used in downstream image analysis and intensity extraction.

Developer Reference

Component	File	Description
TDI integration	`musclex/ui/TotalDisplayIntensity.py`	`maskButtonClicked()` launches the tool; `buildMask()` loads masks
Masking UI & logic	`musclex/ui/ImageMaskTool.py`	`ImageMaskerWindow` handles threshold sliders, dilation checkboxes, Rmin/Rmax, subtraction logic
Manual mask drawing interface	Called via `Draw Mask` (uses built-in or pyFAI tools)
File handling	`musclex/utils/file_manager.py`	`getBlankImageAndMask`, `getMaskOnly` parse files from disk
