Tests Overview¶
Testing a MuscleX Installation¶
Tests are provided to ensure results from an installation match expected results across different devices and dependency versions. Tests can be run from the command line or from the GUI.
GUI Testing¶
A testing module is provided in the launcher GUI. If no log is found, this procedure will run the first time the GUI is launched on a device. To use the GUI testing module,
- Launch the MuscleX GUI
- Click Run Tests in the bottom right corner
- Click Run Tests again at the top of the window to run all module tests
- If you’d only like to run the GPU tests, click run GPU Test and the test will determine if
pyopencl
is installed properly and if MuscleX can access a GPU
Command Line testing¶
Open a terminal window and run musclex test
to run all tests. Output from tests will be printed to the command line. Use musclex test_gpu
to only run the GPU tests.
Testing Methodology¶
The testing suite in musclex_test/tests/
is used for verifying that MuscleX produces predictable results across version changes. Each module is tested independently using module_test.py
. The module test runs in two modes - testrecord
and testverify
. In testrecord
, module output is serialized to Pickle
files for a particular set of input test data. In testverify
, the same data is processed again and serialized to Pickle
files, but is then compared to the files produced in testrecord
mode. If any of these comparisons fail, it’s deemed a failing test and the location of the failure is returned to the user.
This approach provides a couple of important assurances. For developers, it ensures that no unexpected changes in module behavior come up that are caused by changes across versions. For installers, this verifies that an installation is behaving in the way developers expected. The testing framework also provides a tool for ensuring the reproducibility of results across devices.
testrecord
¶
When a new version is pushed that causes changes in test output, a new set of test data should be recorded. To do this starting from the root of the repository:
- Change directory to the test directory.
cd musclex_test/tests/
- Run
module_test.py
intestrecord
mode.
python module_test.py testrecord
Serialized Pickle
files will be written to <modulename>/test_pickles
. One file is written for each field in a module object’s info
class variable.
-

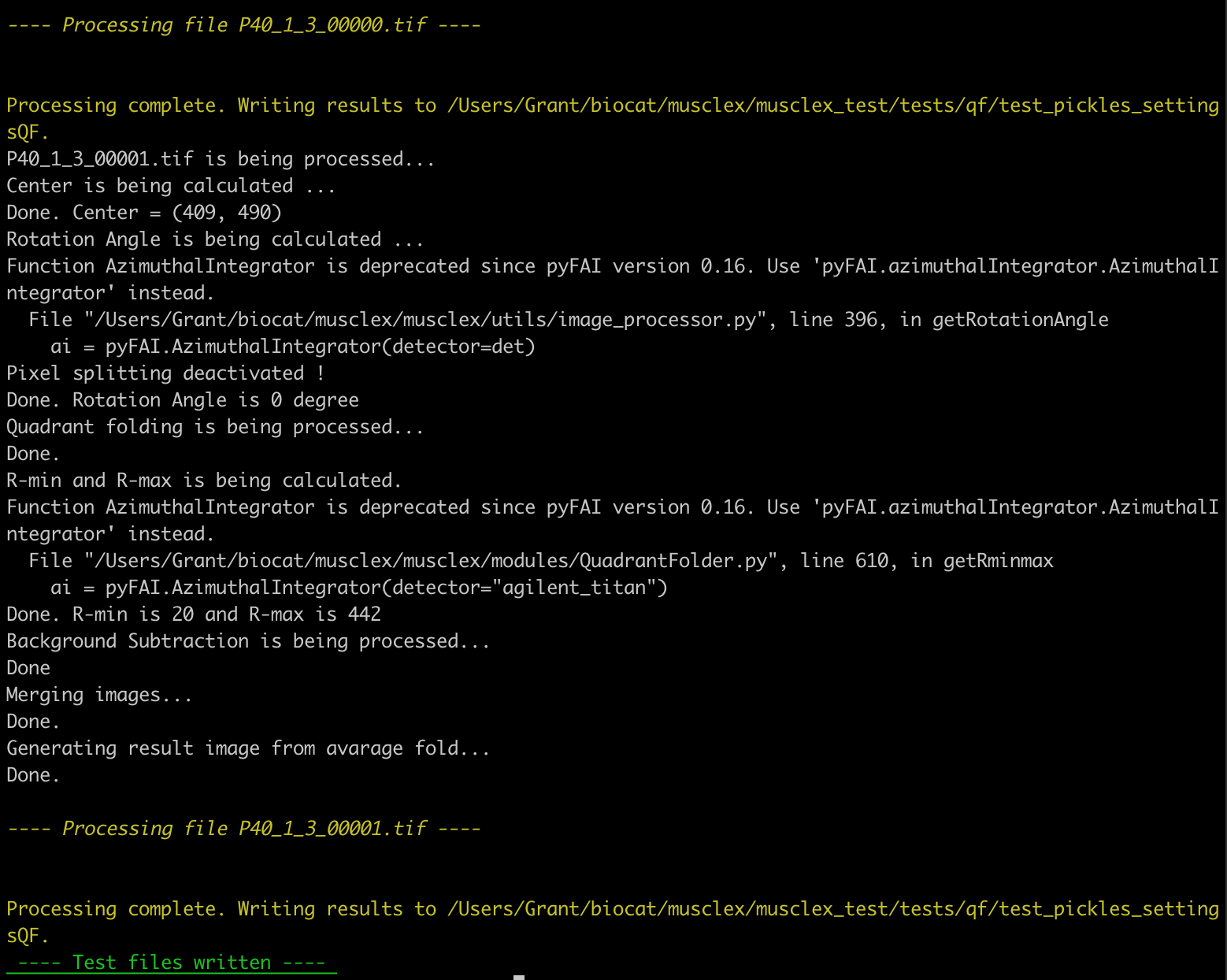

An example of testrecord
output.
testverify
¶
Once output data has been recorded using testrecord
, tests can be run using testverify
. testverify
mode processes the same input data as testrecord
, and compares the output against the data in <module_name>/test_pickles
.
To run the whole testing suite use the following command from the root of the repository:
python -m unittest discover -s musclex_test

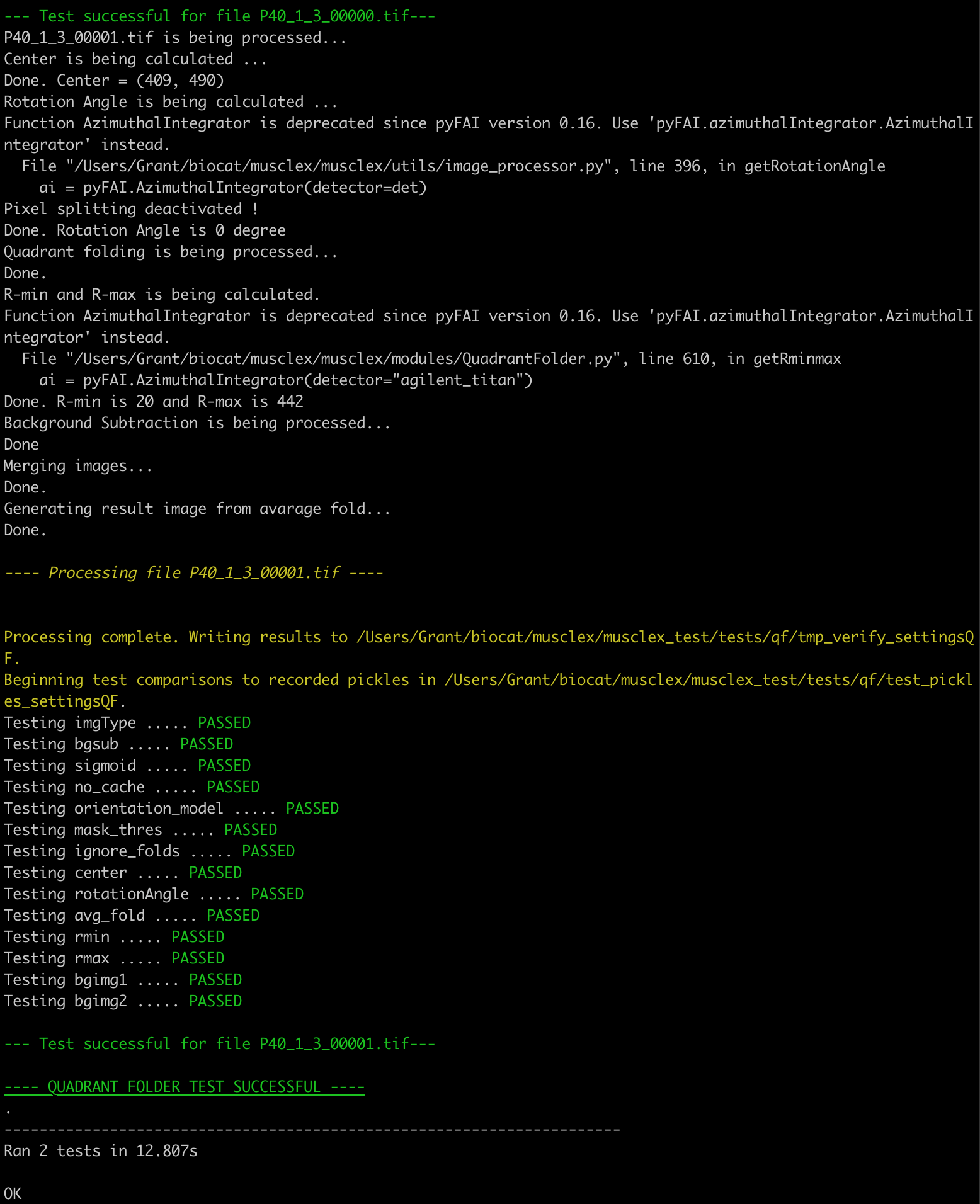

A successful test should produce output similar to the following: -
Testing Data¶
Test data used is found in /musclex_test/tests/test_images
. Each time data in this directory is changed, testrecord
should be rerun.
Given a module and corresponding settings, test Pickle
files are written to folders in <module_name>/test_pickles_<settings_name>
. In testverify
mode, a directory <module_name>/tmp_verify_<settings_name>
is utilized to store generated Pickle
files that are used for comparison, but are deleted at the end of the test. A keeppickles
argument is included in the module_test
function and can be changed to True
to keep the testverify
Pickle
objects. If a test fails, these temporary Pickle
objects are kept to be used for comparison.
Test Suite Summary¶
The unittest
suite is in musclex_test/tests/test_suite.py
. It uses Python’s unit testing framework to run tests for each module under different configurations and provides a summary of the results. They can all be run using the instructions for running in testverify
mode given above. A summary of each test that’s defined in the unittest
suite is given below.
These default test settings were taken from examples in the tests
folder in the root directory.
Equator Image Test - testEquatorImage
¶
This test case runs a testverify
pass for the following settings configurations.
settingsA = {
"left_sigmac" : 1.0,
"right_sigmac" : 1.0,
"orientation_model" : 0,
"nPeaks" : 2,
"model" : "Gaussian",
"isSkeletal" : True,
"mask_thres" : -1.0,
"90rotation" : False,
"blank_mask" : False
}
settingsB = {
"left_sigmac" : 1.0,
"right_sigmac" : 1.0,
"orientation_model" : 0,
"nPeaks" : 5,
"model" : "Voigt",
"isSkeletal" : True,
"mask_thres" : -1.0,
"90rotation" : False,
"blank_mask" : False
}
Data input: test_images
Pickles to compare to: eq/test_pickles_settingsA
, eq/test_pickles_settingsB
To run only this test:
python musclex_test/tests/test_suite.py MuscleXTest.testEquatorImage
Quadrant Folder Test - testQuadrantFolder
¶
The following settings are used.
settingsQF = {
'bgsub' : 'None',
'sigmoid' : 0.0,
'no_cache' : True,
'orientation_model' : 0
}
Data input: test_images
Pickles to compare to: qf/test_pickles_settingsQF
To run only this test:
python musclex_test/tests/test_suite.py MuscleXTest.testQuadrantFolder
Diffraction Centroids Test - testDiffractionCentroids
¶
The following settings are used.
settingsDC = {
'orientation_model' : 0,
'90rotation' : False,
'no_cache' : True
}
Data input: test_images
Pickles to compare to: dc/test_pickles_settingsDC
To run only this test:
python musclex_test/tests/test_suite.py MuscleXTest.testDiffractionCentroids
Projection Traces Test - testProjectionTraces
¶
The following settings are used.
settingsPT = {
'boxes' : {'box1' : ((200, 800),(500, 600))},
'bgsubs' : {'box1' : 0},
'types' : {'box1' : 'h'},
'peaks' : {'box1' : [100]},
'bgsub' : 'None',
'sigmoid' : 0.0,
'no_cache' : True,
'orientation_model' : 0
}
Data input: test_images
Pickles to compare to pt/test_pickles_settingsPT
To run only this test:
python musclex_test/tests/test_suite.py MuscleXTest.testProjectionTraces
Scanning Diffraction Test - testScanningDiffraction
¶
Default settings are used (an empty settings
dictionary is used to initialize processing).
Data input: test_images/di_test_data
Pickles to compare to di/test_pickles_settingsDI
To run only this test:
python musclex_test/tests/test_suite.py MuscleXTest.testScanningDiffraction
HDF Read Test - testHDFRead
¶
This test checks to make sure h5py
can read data from the HDF file generated
by Scanning Diffraction.
Data input: test_images/di_test_data/test.hdf
Pickle to compare to test_images/hdf_record/hdfdata_record.p
pyFAI Integration Test - testGPUIntegratePyFAI
¶
Verifies that the pyFAI
integration function works properly when using the csr_ocl
integration method. Even if pyopencl
is not installed, this function should work with or without a GPU.
GPU Device Test - testOpenCLDevice
¶
Attempts an import of pyopencl
and, if successful, lists the GPU devices available. This test passes if OpenCL
and GPU acceleration is available and fails otherwise. Failing this test could indicate a problem with the pyopencl
installation or imply that GPU acceleration is not available on your device.
